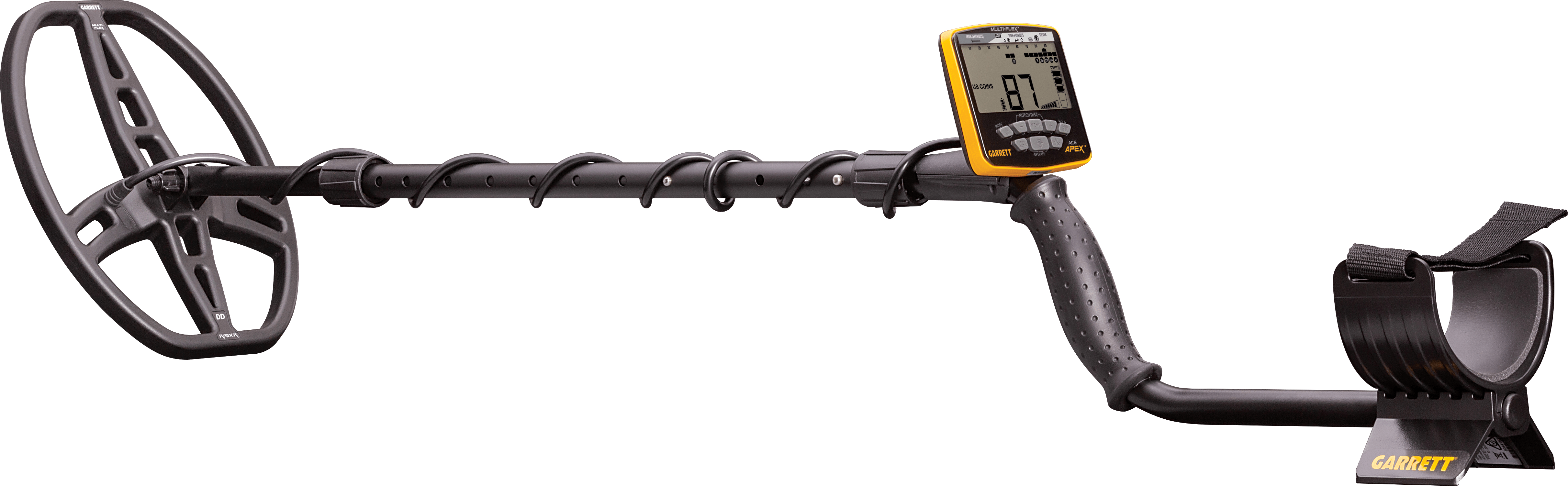

Garrett Ace Apex 8.5x11

The arrival of the Garrett Apex marks the beginning of a new chapter in metal detection. This advanced device builds on the legendary legacy of the Ace series and introduces a modern blend of power, efficiency, and user-friendliness. Lighter, faster, deeper, and equipped with a USB-rechargeable battery – the Apex is ready for any adventure, even in rainy conditions, thanks to its splash-resistant design.

And with revolutionary Multi-Flex technology, Garrett sets the standard for a new era of precision detecting.

Multi-Flex: One Detector, Endless Possibilities

The Multi-Flex feature allows you to detect on multiple frequencies at once or select a single frequency – 5, 10, 15, or 20 kHz.

Low frequencies penetrate deeper and are ideal for locating larger objects.

High frequencies offer extreme sensitivity to tiny items near the surface.

Use Multi-Flex to engage all frequencies simultaneously and enjoy maximum versatility and depth.

Powerful in Challenging Soils

Apex is specifically designed to perform in tough environments such as salty beaches and highly mineralized soils. The Salt Mode, part of Multi-Flex, ensures stable performance where other detectors fail. No noise, no interference – just accurate detection with consistent depth.

Smart and Durable Charging System

The built-in lithium-ion battery charges easily using the supplied USB cable. Depending on your settings, you can expect up to 15 hours of use per charge.

Search Programs for Every Goal

Choose from six preset modes:
Zero, Coins, US Coins, Jewelry, Relics or create your own Custom mode.
Use the pinpoint function to accurately locate the detected object.

48 Unique Frequency Channels

Each mode includes 8 frequency variations, totaling 48 individual settings. Perfect for avoiding interference from nearby detectors or electronic devices – ideal for group hunts or competitions.

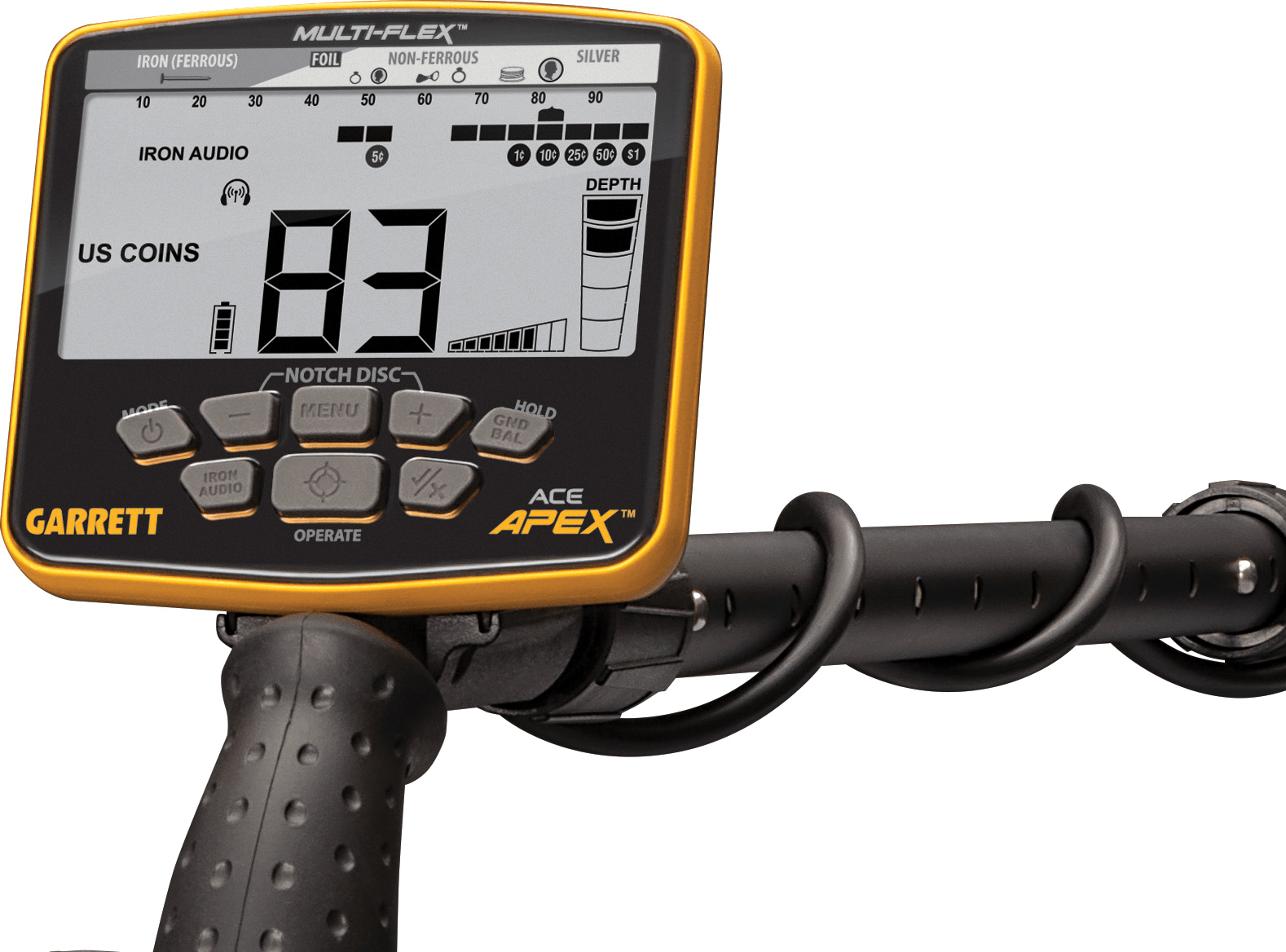

Always Visible: Backlit LCD Screen

The bright display backlight ensures all information remains clearly visible, even in low-light conditions or after dark.

Extended Ground Balance for All Terrains

With up to 175 ground balance resolution points, the Apex handles a wide range of soil types – from farm fields to mineral-rich and salty environments. This is limitless detecting.

Super-Fast Z-Lynk Wireless Technology

Experience the freedom of real-time, cable-free detecting. Garrett’s exclusive Z-Lynk system is up to six times faster than Bluetooth.
➤ Tip: Choose the Wireless Package with wireless headphones for full mobility.

Better Iron Target Identification

The Iron Audio feature makes it easy to identify tricky targets like bottle caps. With 8 adjustable iron volume levels, you control what you hear – without sacrificing depth.

User-Friendly Interface

The Apex is built with intuitive operation in mind. All settings are easily accessible via a logically arranged menu.

Target Identification in Numbers and Tones

When a target is detected, a number (1–99) appears on screen, indicating the object’s likely composition. Segment bars and five audio tones also provide instant clues – even before digging.

Advanced Discrimination & Notch Filter

With 20 notch segments (8 for iron), you can choose what to ignore. Filter out unwanted items like nails or junk and focus on valuable finds.

Ultimate Speed: Fast Target Response

Thanks to its rapid response time, the Apex can distinguish between multiple closely spaced targets – no object goes unnoticed.

Adjustable Iron Volume

Fine-tune iron audio volume – louder, softer, or fully silent. Stay aware of what’s underground without losing depth or accuracy.

Full Volume Control

Adjust the overall sound level via the built-in speaker or (wireless) headphones.

NEW 28 x 22 cm DD Raider Search Coil

Wide-range usability without changing coils when switching frequencies

Ideal size for tight spots and open fields

Fully waterproof – suitable for shallow water detection
Note: the control box is not waterproof. Use a cover in rainy conditions.
